Liebherr crane parts - Professional certified crawler crane parts manufacturer
Nov 02,2023
Liebherr crawler cranes are equipped with durable undercarriage parts that are designed to provide strength, longevity, and exceptional mobility on all types of terrain. These undercarriage components play a crucial role in the overall performance and reliability of the crane. Let's take a closer look at each of these parts:
Liebherr Crane Track shoe：
Product Name | Track shoe |
Product Information | Track Shoe / Plate / Grouser Shoe |
Material | ZG35SiMn/28CrMnMo / 28CrMnMoNi / G22NiMoCr5-6 |
Finish | Smooth |
Colors | Black / Customer Requirement |
Technique | Casting |
Warranty time | 1 years / 2500 working days |
Track plate functions and roles:
1. Provide traction: the track plate is made of high strength steel, which can provide good traction and enable the crawler crane to move on all kinds of terrain. Whether in soft ground, muddy areas or rugged mountainous terrain, the track plate can provide the required traction to ensure the stability and safe operation of the crawler crane.
2. Absorption of ground impact: Track plates not only provide traction, but also absorb ground impact. In heavy-duty working conditions, tracked cranes are subjected to impacts from the ground, and the track plates effectively reduce these impacts, extending the life of the chassis components and other key parts.
3. Providing support and stability: Track plates provide support and stability to the undercarriage by fitting to the track rollers and drive gears. They ensure proper track movement and keep the track crane balanced for stability and accuracy during operation.
Liebherr Crane Track Roller：
Product Name | Track roller |
Product Information | Undercarriage Parts/Track roller |
Material | 40Mn2/42CrMo |
Finish | Smooth |
Colors | Black / Customer Requirement |
Technique | Forging |
Warranty time | 1 years/2500 working days |
Bottom roller functions and roles:
1. The main function of the supporting wheel is to support the weight of the machinery, transfer the weight of the locomotive set and the weight of the lifted goods to the ground, and at the same time roll on the track plate.weight to the ground, while rolling on the track plate.
2. The supporting wheel can also play a certain role in restricting the track to prevent it from slipping off laterally, and when the machine turns, the supporting wheel forces the track to slide on the ground.When the machine is turned, the supporting wheels force the tracks to slide on the ground.
Carrier wheel functions and roles:
1. The carrier wheel plays the role of lifting the top track plate to prevent the track from hitting.
2. To make the tracks have a certain degree of elasticity and keep the verticality of the tracks not exceeding a certain limit to prevent the tracks from drooping too much.
3. Reduce the running resistance of the tracks to ensure smooth running of the tracks.
Liebherr Crane Idler:
Product Name | Idler |
Product Information | Idler / Front Wheel |
Material | ScSiMn2H/ZG40Mn2 |
Finish | Smooth |
Colors | Black / Customer Requirement |
Technique | Casting / Forging |
Warranty time | 1 years / 2500 working days |
Idler functions and roles:
1. Guiding the track to wind correctly, using the tensioning device to move the guide wheel to adjust the tension of the track.
Therefore, the guide wheel is not only the guide wheel of the track, but also the tensioning wheel in the tensioning device.
2. Guiding and positioning function.
Liebherr crane sprocket:
Product Name | Sprocket |
Product Information | Sprocket / Drive Gear / Tumbler Drive |
Material | Mn3A /ZG40Mn2/ZG30CrNiMo |
Finish | Smooth |
Colors | Black / Customer Requirement |
Warranty time | 1 years / 2500 working days |
Sprocket functions and roles:
By meshing the gears with the crawler, the power transmitted from the motor to the reducer is transmitted to the crawler, thus driving the crane forward.

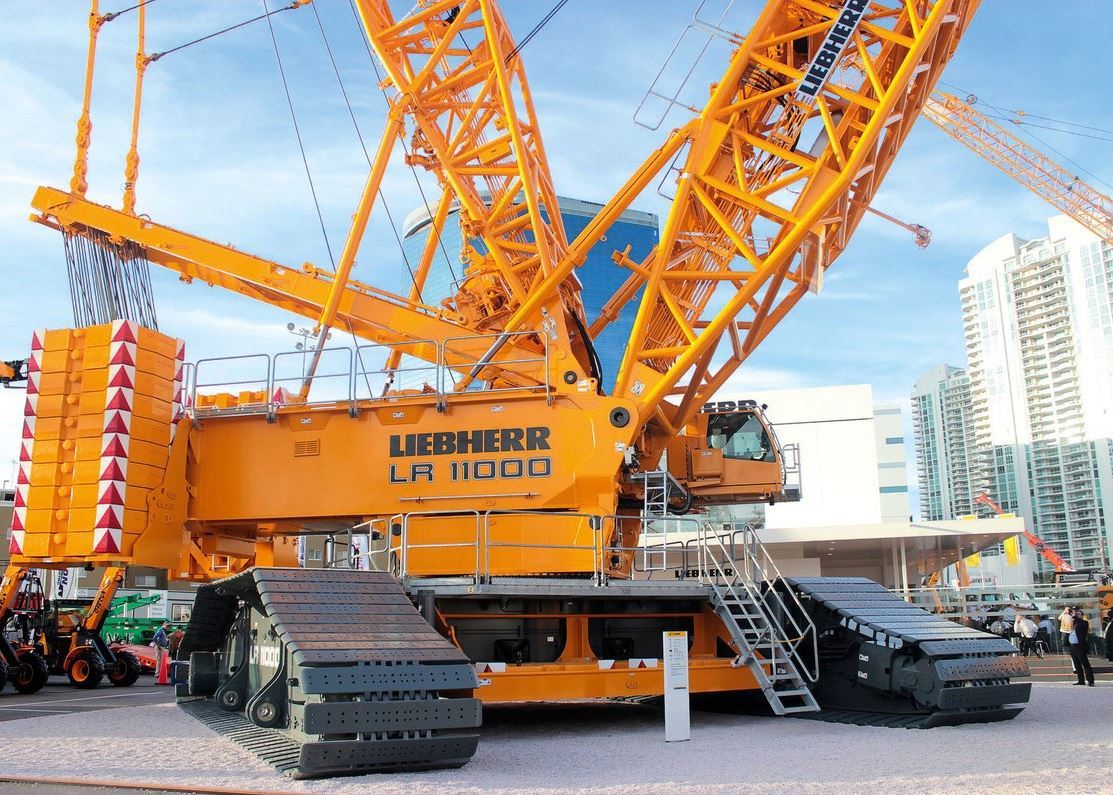

What are the models of liebherr crawler crane?
| HS833HD | HS843HD | HS853 | HS853HD | HS855HD | HS872 |
| HS882 | HS883 | HS885HD | LR1100 | LR1130 | LR1160 |
| LTR1060 | LTR1100 | LR1200 | LR1250 | LR1280 | LR1300 |
| LR1350 | LR1350-1 | LR1400 | LR1400-2 | LR1500 | LR1550 |
| LR1600 | LR1600-2 | LR1600-2-W | LR1650 | LR1700 | LR1750 |
| LR1750-2 | LR1800 | LR11000 | LR11350 |
Why choose liebherr？
1. Technical innovation: Liebherr crawler cranes adopt advanced technology and innovative design to meet the needs of different engineering environments. It has excellent manoeuvrability and stability, able to work in a variety of complex terrain and harsh weather conditions.
2. Strong load-carrying capacity: Liebherr crawler cranes have excellent load-carrying capacity and are suitable for a variety of engineering tasks. Whether it is used for construction, excavation, harbour work or other heavy-duty projects, Liebherr crawler cranes are able to meet all kinds of challenges with ease.
3. Versatility: Liebherr crawler cranes come with a wide range of features and accessories that can be customised to suit actual needs. They can be used for lifting, hoisting, dismantling, loading and many other jobs, which can improve efficiency and flexibility.
4. High safety: Liebherr crawler cranes are designed and manufactured with safety in mind. They are equipped with advanced safety systems and devices to ensure the safety of operators and the surrounding environment. In addition, Liebherr crawler cranes have passed rigorous testing and certification to ensure their quality and reliability.
5. Easy maintenance: Liebherr crawler cranes are designed to be easy to maintain and service. They are made of advanced technology and materials that enhance the durability and reliability of the spreader. In addition, Liebherr provides comprehensive after-sales service and support to ensure that customers receive timely assistance and repairs during use.
Whether you are working on construction sites, harbours, mines or other heavy engineering projects, Liebherr crawler cranes are a reliable choice. Whether they are used to lift heavy loads or to carry out other work, they offer excellent performance and reliability to meet the needs of our customers. Whether in design, manufacture or after-sales service, Liebherr always upholds the highest standards to provide the best possible solution for its customers.
Why Choose Evergrowing?
As an experienced manufacturer of Crawler Crane Undercarriage Parts, we are proud to introduce ourselves as a professional and certified supplier. We supply a wide range of Crawler Crane Undercarriage Parts including track shoe, idler, sprocket, bottom roller, top roller and more.
Our liebherr crane parts are certified to ensure the quality and reliability of our products. We manufacture in strict accordance with international quality standards, ensuring that each product is subject to rigorous testing and quality control. We understand that in the working environment of a crawler crane, the quality of the undercarriage parts is critical to the performance and longevity of the equipment.
As a professional supplier, we provide one-stop service. No matter what kind of undercarriage parts you need, we can meet your needs. We have an extensive inventory to ensure timely delivery. In addition, we also offer OEM customisation services to tailor undercarriage parts to your specific requirements.
You can buy with confidence when you choose undercarriage parts manufactured by Evergrowing. We are committed to providing high quality products to ensure that your equipment is always in top condition. We provide you with quality assurance and professional after-sales service.
Please feel free to contact us if you have any needs about liebherr crawler crane undercarriage parts. We are looking forward to cooperating with you and providing you with satisfactory solutions.
Mail: info@crawlercranesparts.com
Whatsapp: +86 17853553781
